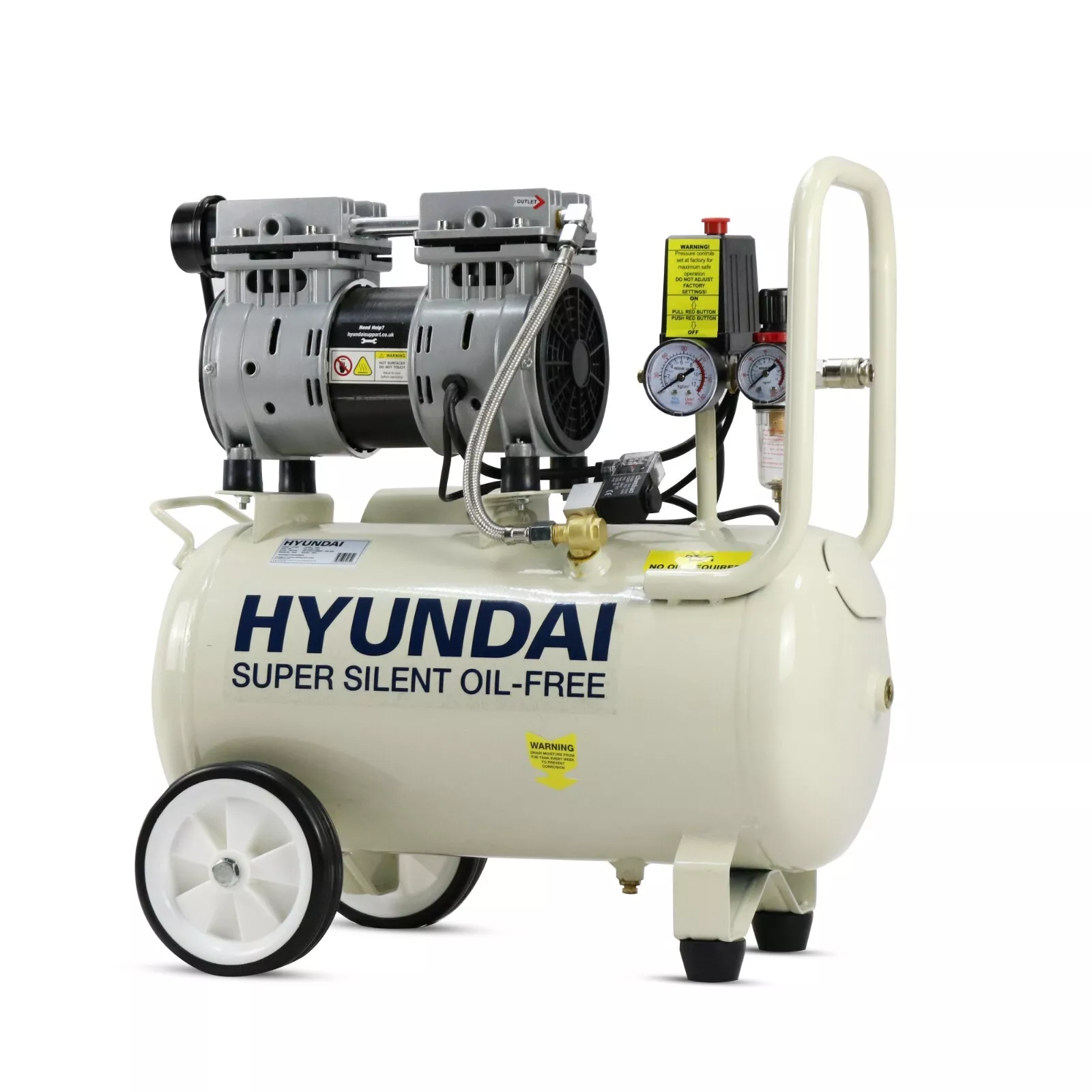

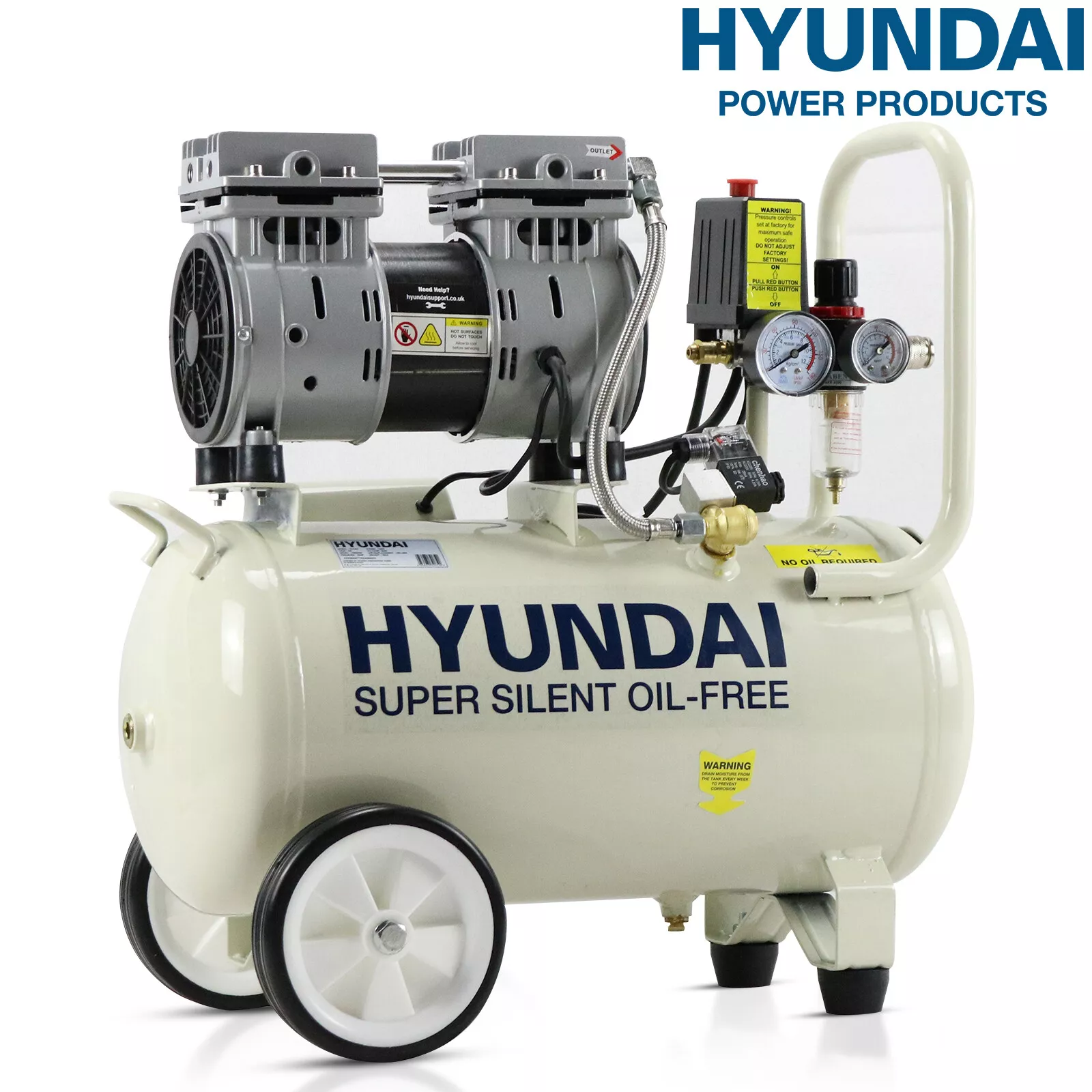

Air Compressor SUPER Silent Portable 24L Oil Free 1HP 100PSI 7BAR 230v Hyundai

Air Compressor SUPER Silent Portable 24L Oil Free 1HP 100PSI 7BAR 230v Hyundai

Ahorra 97%
$ 579.00 MXN
$ 18,990.00 MXN
Cantidad
Solo quedan 0
Fijación de precio por lote
Cantidad
Precio
1+
$ 579.00 MXNpc

Item specifics

Condition
New
Pump (RPM)
1450
Gross Weight
24.5kg
Power Source
Wall Outlet
Plug
13A UK
MPN
HY7524
Colour
White
Accessories
N/A
Air Flow FAD (L/min)
75
Horsepower
1HP
Air Outlet Connection
Euro Quick Release
Tank Capacity (Litres)
24
Cable Length
1 Metre
Tank Material
Steel
Noise Level At 7m
60dB
Fully Assembled Dimensions
560 x 295 x 570mm (H x W x L)
Max Pressure (psi/bar)
118/8
Air Displacement (L/min)
150
Voltage (V)
230
Manufacturer Part Number
HY7524
Drive Type
Direct Drive
Speed (RPM)
1040
Pump Type
Single Stage
Lubrication Type
Oil Free
Brand
Hyundai
Packaged Dimensions
630 x 290 x 600mm (H x W x L)
Type
Air Compressor
Air Flow FAD (CFM)
5.65
Portable or Stationary
Portable
Discharge Pressure (psi/bar)
100/7
Rated Power
750w
Motor Power kW/hp
.075/1
Net Weight
22.5kg
Air Displacement (CFM)
5.28
EAN
5056275722722

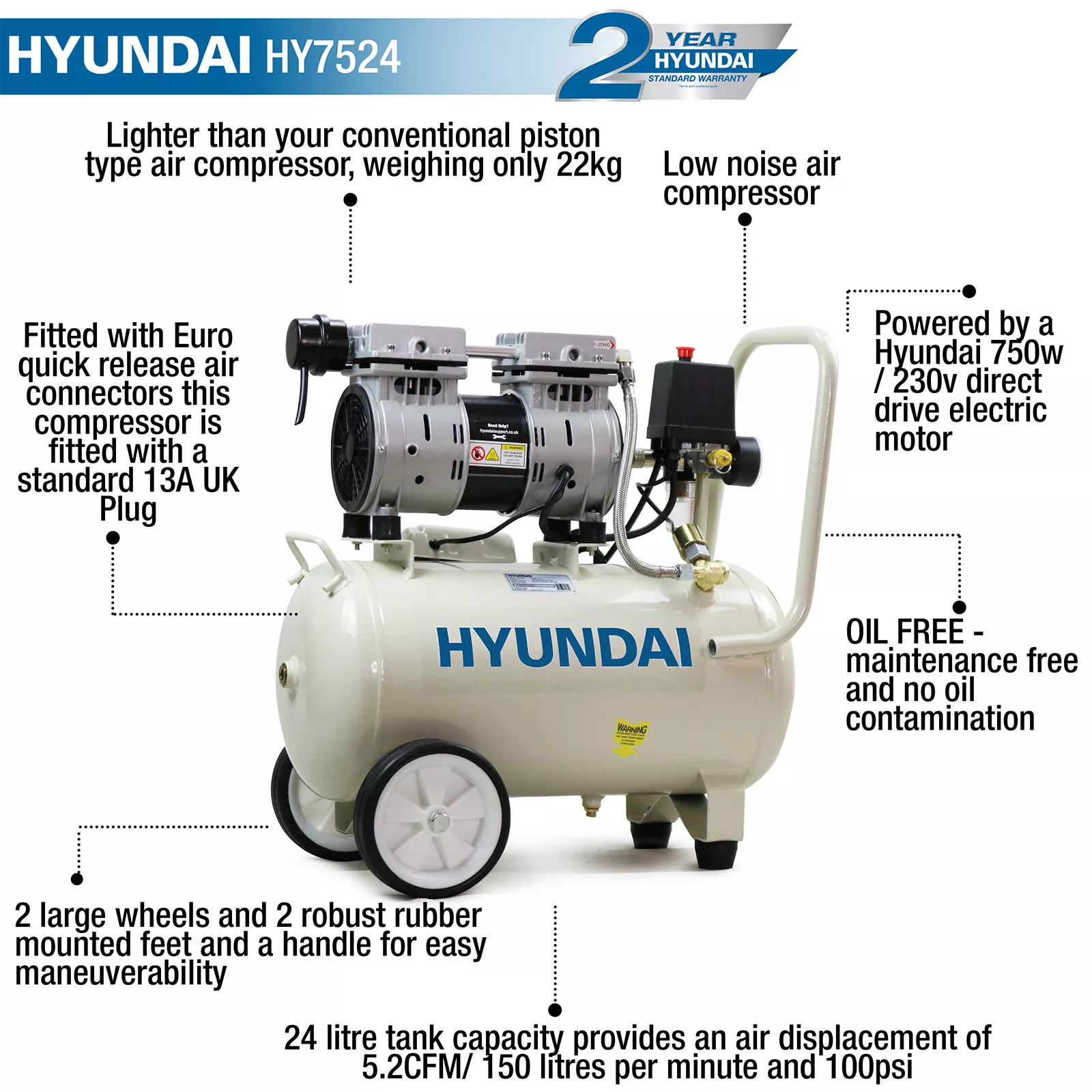

Low noise air compressor with a duty cycle of 25%.
OIL FREE - maintenance free and no oil contamination.

Hyundai 750w / 230v direct drive electric motor with UK 3-pin 13amp plug.

24 litre tank capacity provides an air displacement of 5.2CFM/ 150 litres per minute and a maximum pressure of 100psi / 7bar.

Pressure regulator with twin pressure gauges and twin quick release ?Euro? type air connectors and water / condensation trap.

Includes automatic cut out switch, safety valve and pressure regulator.

Covered by Hyundai 2 year warranty.

Full spares available to maintain your air compressor for years to come.



Powerful And Compact Air Compressor

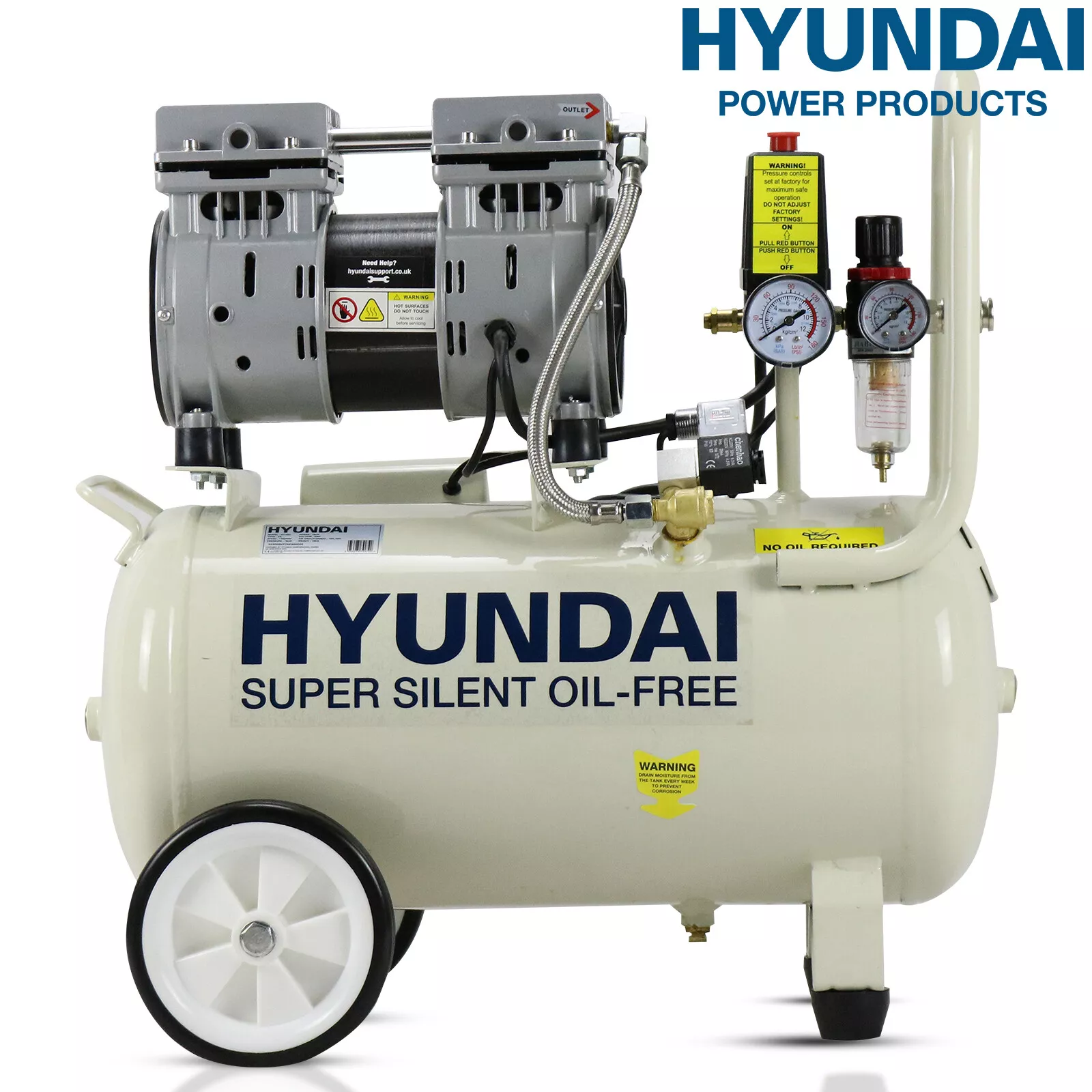

The HY7524 is a powerful yet compact 750w direct-drive oil-free low noise air compressor from Hyundai.

Suitable For Various Jobs

Designed for DIY and trade applications the HY7524 silenced oil-free air compressor is ideal for spray-painting, blowing away dirt and dust, nailing, inflating tyres or operating air tools.

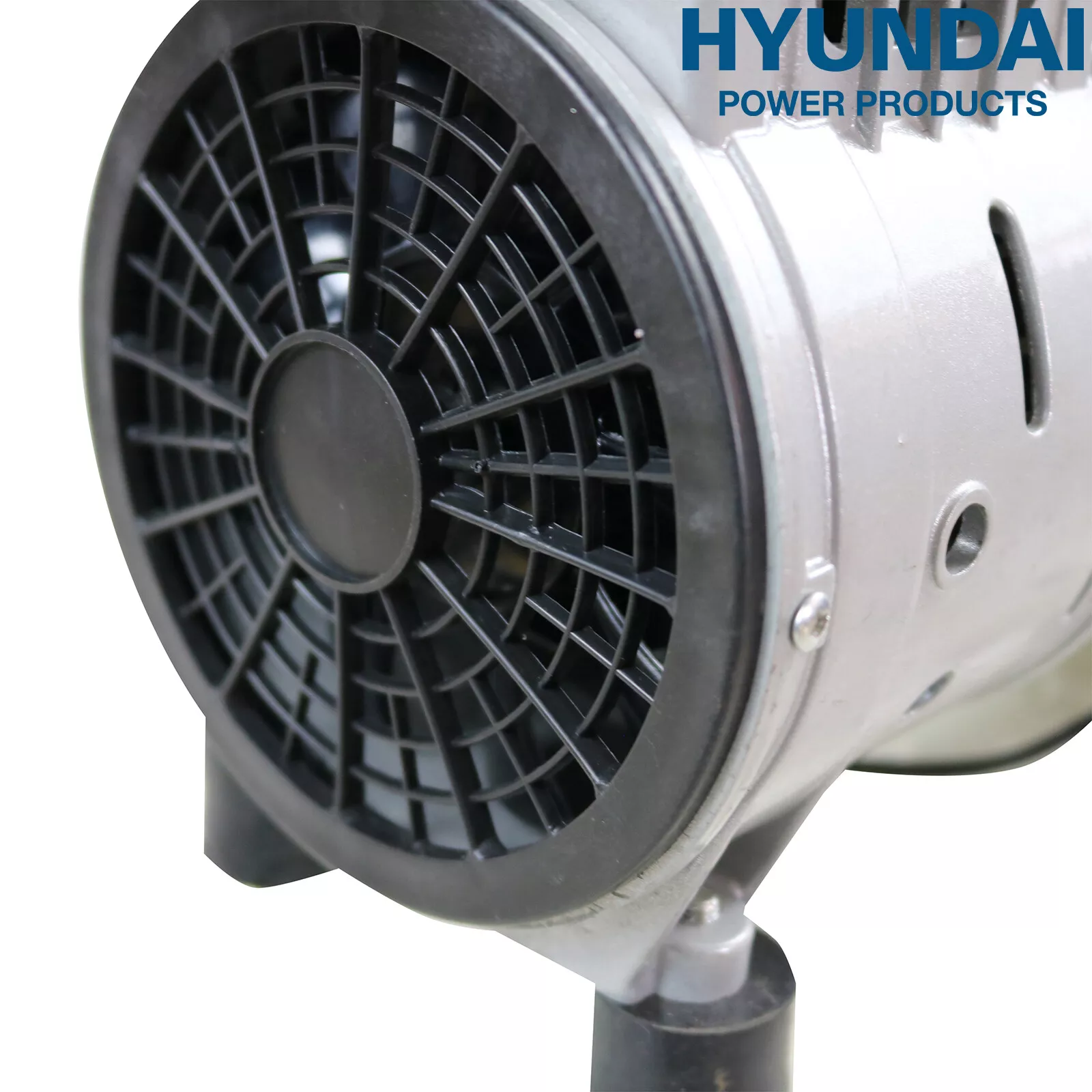

Slow-running for 50% longer life

A slow-running, 4-pole motor operating at 1450 RPM, like the Hyundai HY7524 air compressor, offers reduced noise and results in less wear and tear on internal components, which can extend the compressor's lifespan. Running at a slower speed typically consumes less energy, making it a more energy-efficient solution for users and potentially lowering electricity costs over the long term.

Lightweight Compressor

Weighing only 22kg the HY7524 whisper compressor is lighter than your conventional piston type air compressor and is completely oil-free, so there is no risk of oil contamination in the air supply.

Portable Air Compressor

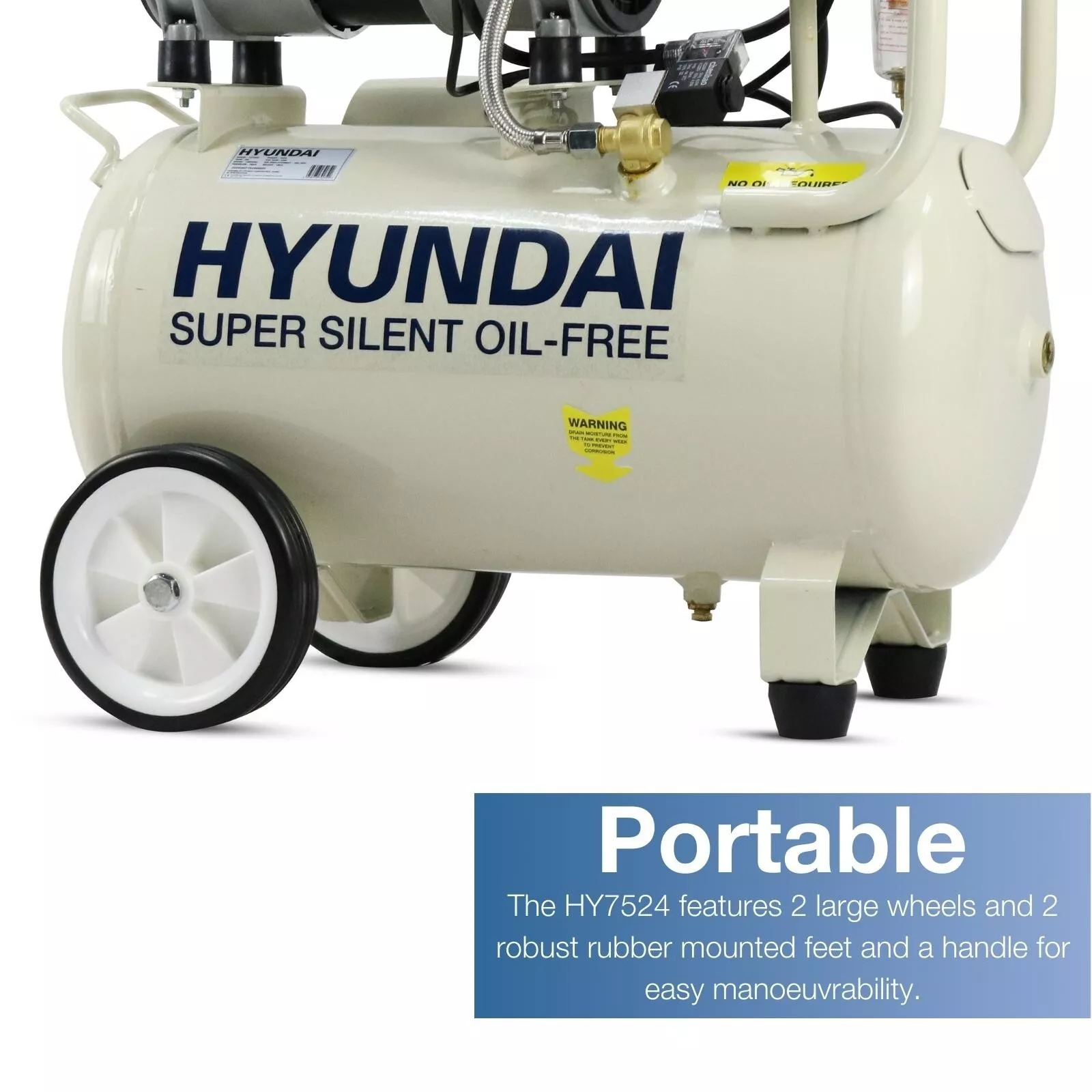

The HY7524 features 2 large wheels and 2 robust rubber mounted feet and a handle for easy manoeuvrability.

Powered By Standard Mains Supply

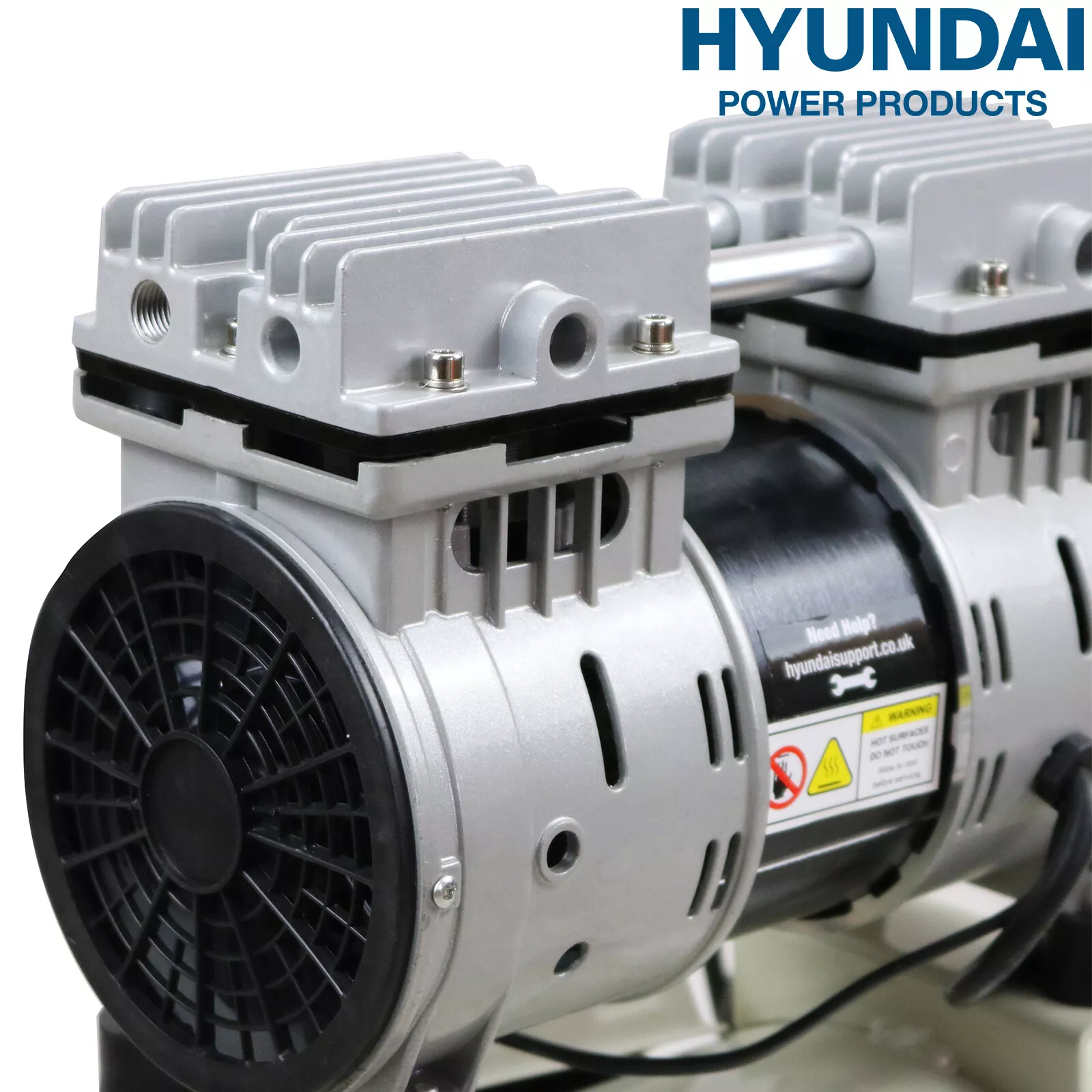

Powered by a 750w motor directly connected to the oil-less pump mounted on anti-vibration rubber mounts, makes it is ideal for the home workshop or garage use where conventional residential power sockets are available.

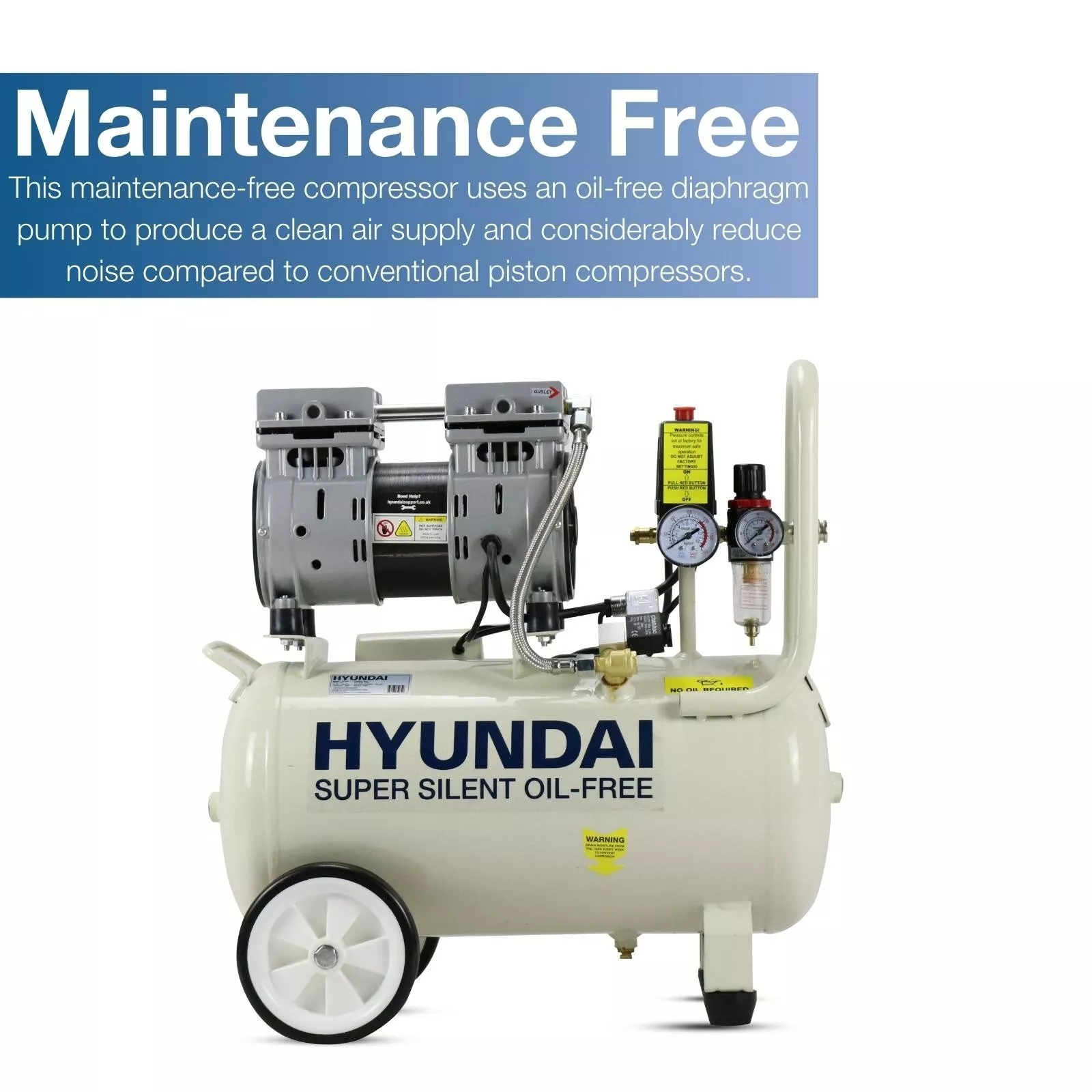

Maintenance Free

This maintenance-free compressor uses an oil-free diaphragm pump to produce a clean air supply and considerably reduce noise compared to conventional piston compressors.

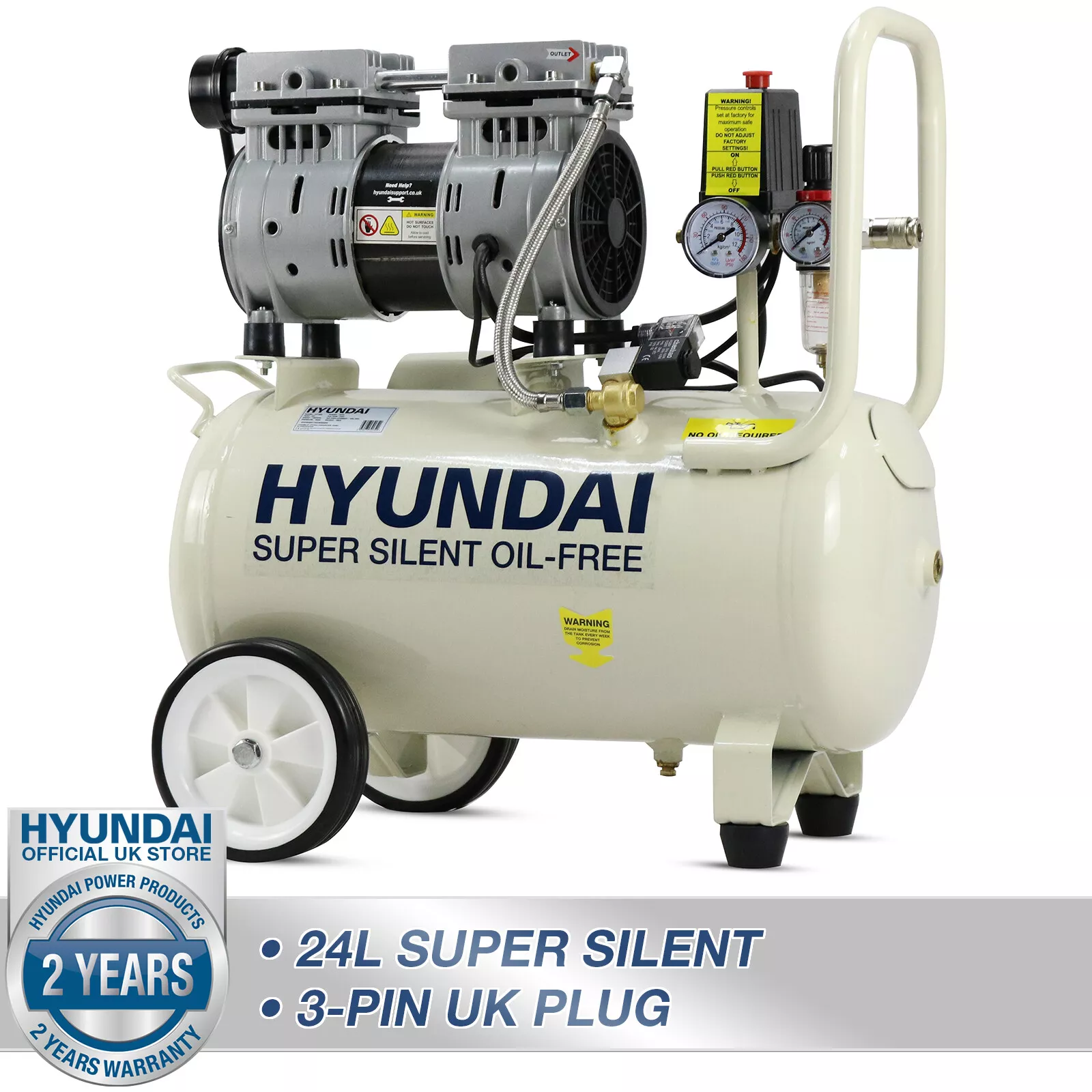

24L Tank

With a 24-litre tank capacity, this compressor provides an air displacement of 5.2CFM/ 150 litres per minute and a maximum pressure of 7 bar/ 100psi.

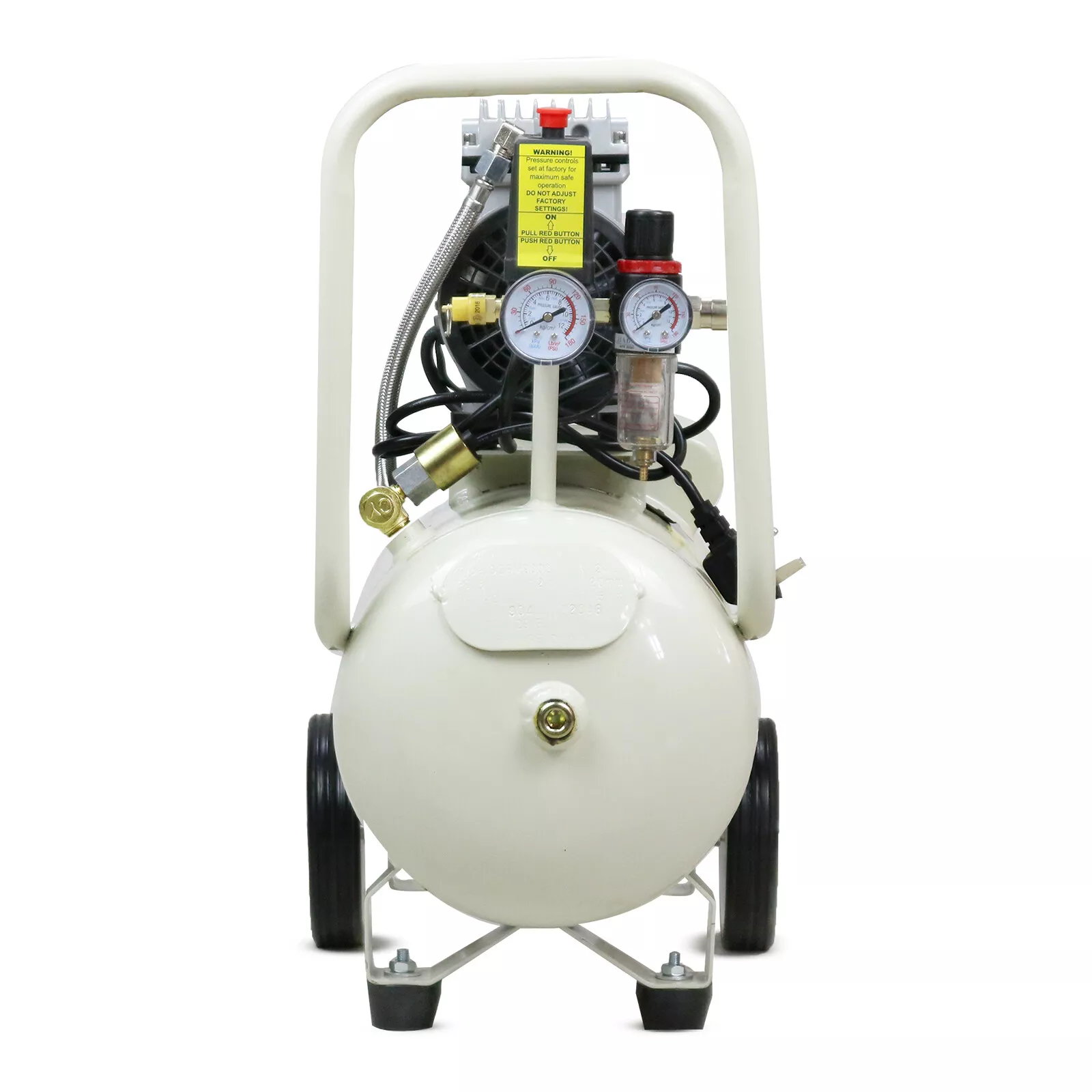

Pressure Control System

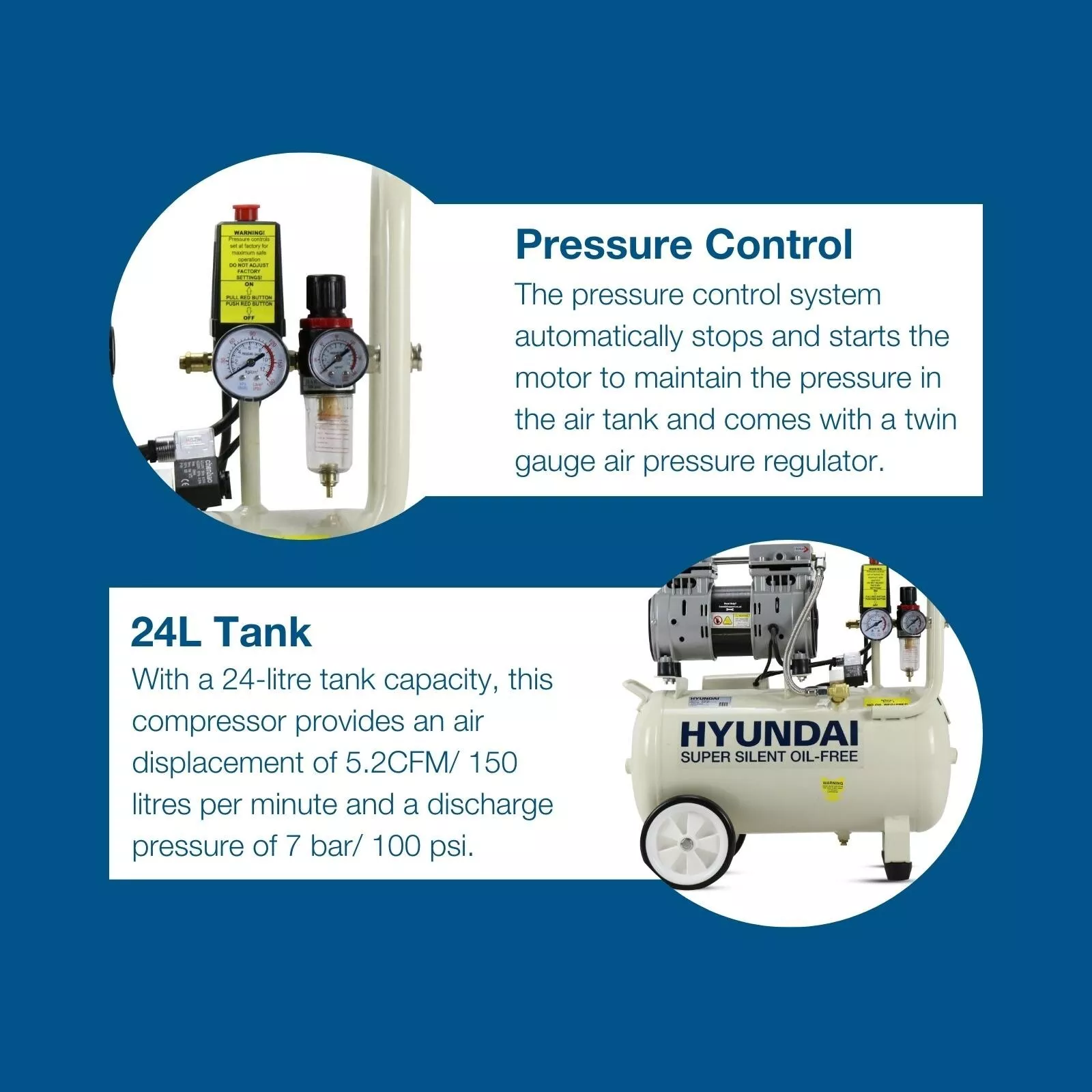

The pressure control system automatically stops and starts the motor to maintain the pressure in the air tank and comes with a twin gauge air pressure regulator.

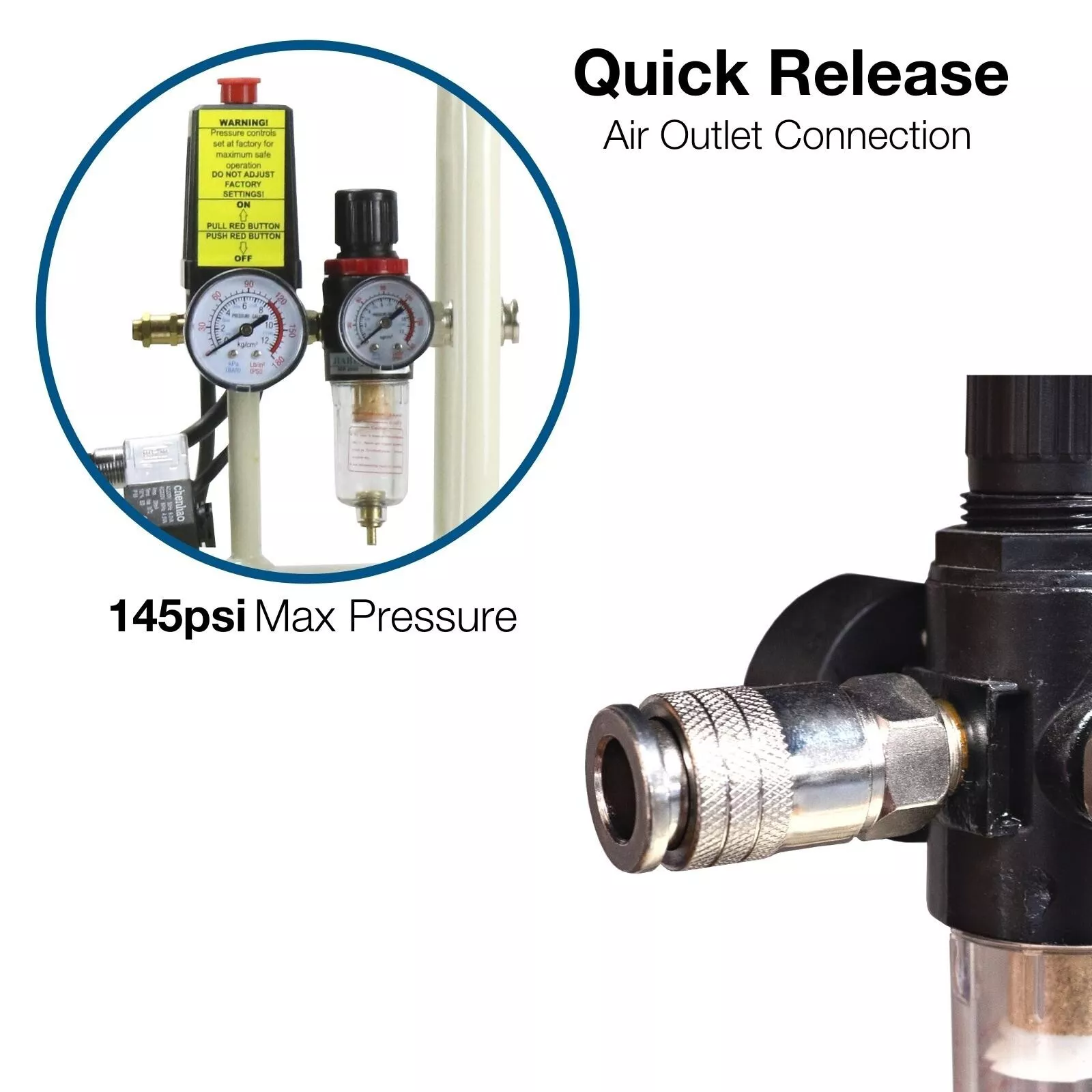

Euro Quick Release Connectors

Fitted with Euro quick release connectors this compressor is fitted with a standard 13A UK Plug.

Filling Time - All times given are approximate. Environmental factors will impact duration.

Time taken in seconds to refill tank from empty set pressure ( 0 to maximum): 2 minutes 26 seconds
 Time taken in seconds from low pressure during use to maximum pressure (cut in pressure to Max ): 46 seconds
Compressor pressure
Pressure when motor starts to refill air tank when in use (Bar)  ± 0.5 Bar: 5
Pressure when motor stops filling air tank when in use (Bar)  ± 0.5 Bar: 7

Compressor Care

Pressure safety valves on Hyundai wika air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.

In The Box:

  • HY7524 Electric Air Compressor
  • User Manual

Warranty

Covered by Hyundai 2 year warranty.
